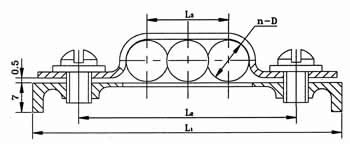

● 管夾
|
|
|
|
代號（訂貨號）
|
管子外徑D
|
夾管數n
|
L1
|
L2
|
L3
|
重量
|
|
ZY619.1.00
|
6
|
1
|
40
|
24
|
-
|
0.02
|
|
ZY619.2.00
|
2
|
47
|
31
|
7
|
0.03
|
|
ZY619.3.00
|
3
|
54
|
38
|
14
|
0.03
|
|
ZY619.4.00
|
4
|
61
|
45
|
21
|
0.03
|
|
ZY619.5.00
|
5
|
68
|
52
|
28
|
0.03
|
|
ZY619.6.00
|
6
|
75
|
59
|
35
|
0.04
|
|
|
|
|
|
|
|
|
|
ZY620.1.00
|
8
|
1
|
44
|
28
|
-
|
0.02
|
|
ZY620.2.00
|
2
|
54
|
38
|
9
|
0.03
|
|
ZY620.3.00
|
3
|
62
|
46
|
18
|
0.03
|
|
ZY620.4.00
|
4
|
71
|
55
|
27
|
0.04
|
|
ZY620.5.00
|
5
|
80
|
64
|
36
|
0.04
|
|
ZY620.6.00
|
6
|
89
|
73
|
45
|
0.04
|
|
ZY620.7.00
|
7
|
98
|
82
|
54
|
0.04
|
|
ZY620.8.00
|
8
|
107
|
91
|
63
|
0.05
|
|
|
|
|
|
|
|
|
|
ZY621.1.00
|
10
|
1
|
46
|
30
|
-
|
0.03
|
|
ZY621.2.00
|
2
|
58
|
42
|
11
|
0.03
|
|
ZY621.3.00
|
3
|
68
|
52
|
22
|
0.04
|
|
ZY621.4.00
|
4
|
79
|
63
|
33
|
0.04
|
|
|
|
|
|
|
|
|
|
ZY631.1.00
|
14
|
1
|
54
|
38
|
-
|
0.04
|
|
ZY631.2.00
|
2
|
70
|
54
|
15
|
0.04
|
|
ZY631.3.00
|
3
|
84
|
68
|
30
|
0.05
|
|
|
標記示例：夾管數n為1，管子外徑D為6的管夾；管夾1×Φ6 ZY619.1.00
|
|

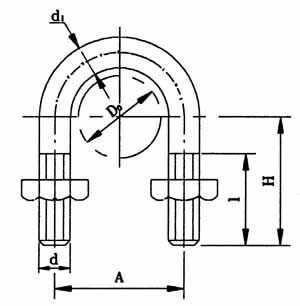

● U型螺栓
|
|
|
|
代號
|
管子外徑
|
A
|
H
|
d
|
l
|
d1
|
螺母?jìng)€(gè)數
|
重量
|
|
ZY628.1.00
|
14
|
21
|
24.5
|
M6
|
18
|
6
|
2
|
0.022
|
|
ZY628.2.00
|
18
|
25
|
27
|
0.024
|
|
ZY628.3.00
|
22
|
31
|
34.5
|
M8
|
25
|
8
|
0.058
|
|
ZY628.4.00
|
28
|
37
|
38.5
|
0.066
|
|
ZY628.5.00
|
34
|
44
|
40
|
M10
|
10
|
0.072
|
|
ZY628.6.00
|
42
|
54
|
47
|
0.132
|
|
ZY628.7.00
|
48
|
60
|
49
|
0.142
|
|
ZY628.8.00
|
60
|
74
|
56
|
M12
|
28
|
12
|
0.203
|
|
ZY628.9.00
|
219
|
248
|
149
|
M20
|
70
|
20
|
4
|
1.946
|
|
ZY628.11.00
|
76
|
90
|
80
|
M12
|
50
|
12
|
0.324
|
|
ZY628.12.00
|
89
|
103
|
80.5
|
M16
|
60
|
16
|
0.354
|
|
ZY628.13.00
|
114
|
132
|
97
|
0.766
|
|
ZY628.14.00
|
140
|
158
|
104
|
0.866
|
|
ZY628.15.00
|
168
|
186
|
116
|
0.966
|
|
ZY628.16.00
|
273
|
302
|
173
|
M20
|
70
|
20
|
2.276
|
|
ZY628.17.00
|
325
|
352
|
199
|
2.598
|
|
ZY628.18.00
|
368
|
402
|
222
|
M24
|
24
|
4.268
|
|
ZY628.19.00
|
406
|
436
|
278
|
M24
|
95
|
24
|
4
|
4.648
|
|
|
標記示例：U型螺栓14 ZY628.1.00
|
